| 원래 장소: | 저장 성, 중국 |
|---|---|
| 브랜드 이름: | XK |
| 인증: | ISO9001 / GB / IEC |
| 모델 번호: | PD33-400 |
| 최소 주문 수량: | 99-299 조각 |
| 가격: | Negotiation |
| 포장 세부 사항: | 패킹 수출 |
| 지불 조건: | L/C, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 달 당 3000 조각/조각 |
| 이름: | 중합체 신관 배기판 | 수용량을 끊기: | 높은 |
|---|---|---|---|
| 안전 표준: | IEC | 사용법: | 고전압 |
| 표준: | GBJ, JB, IEC | 정격 현재: | 400A |
| 정격 전압: | 30-36KV | 기계적인 생활: | 10000 |
| 하이 라이트: | 33KV 융합된 차단 Switch,400A 융합된 차단 스위치,구축 하락 퓨즈 절단 |
||

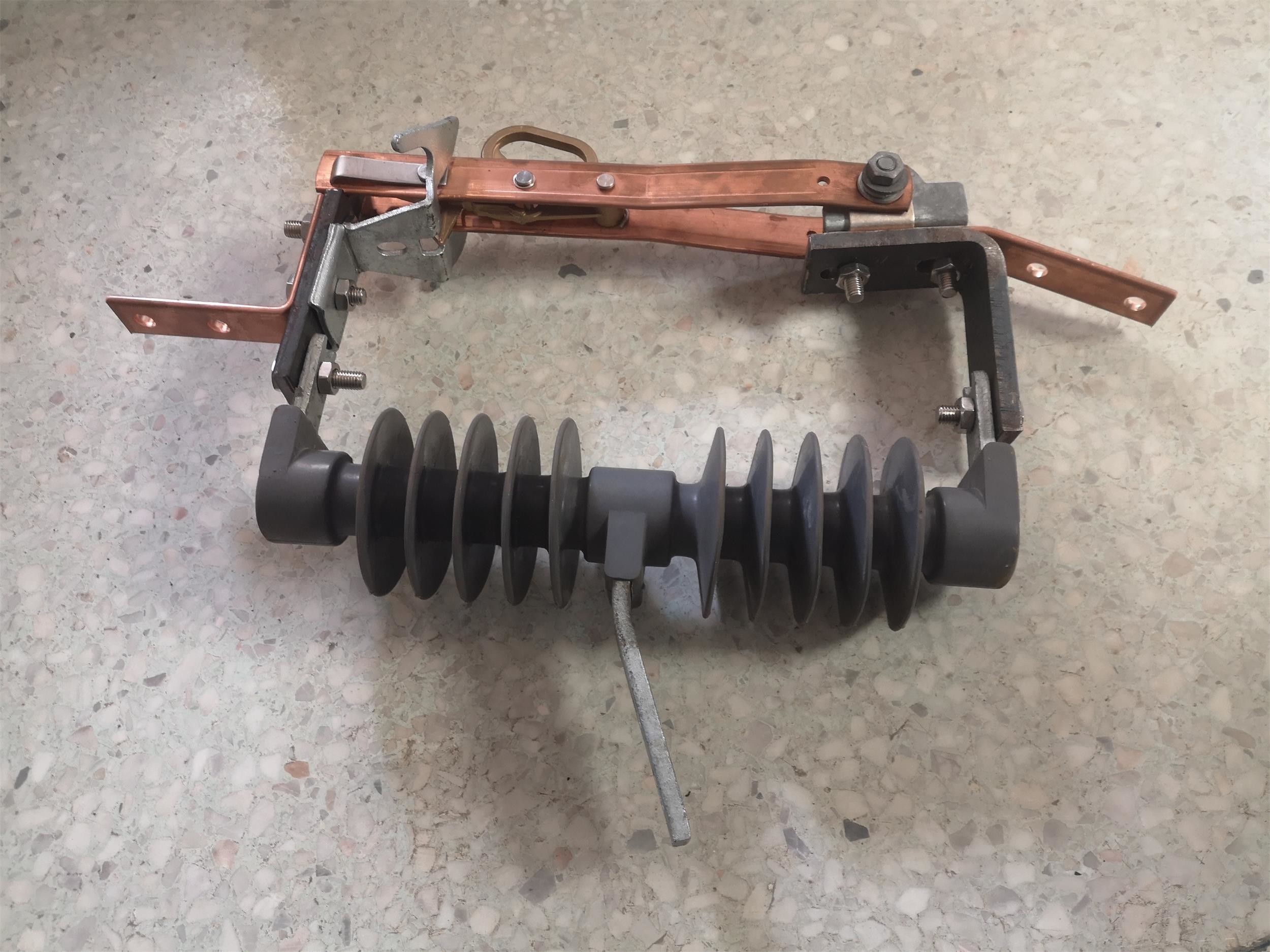

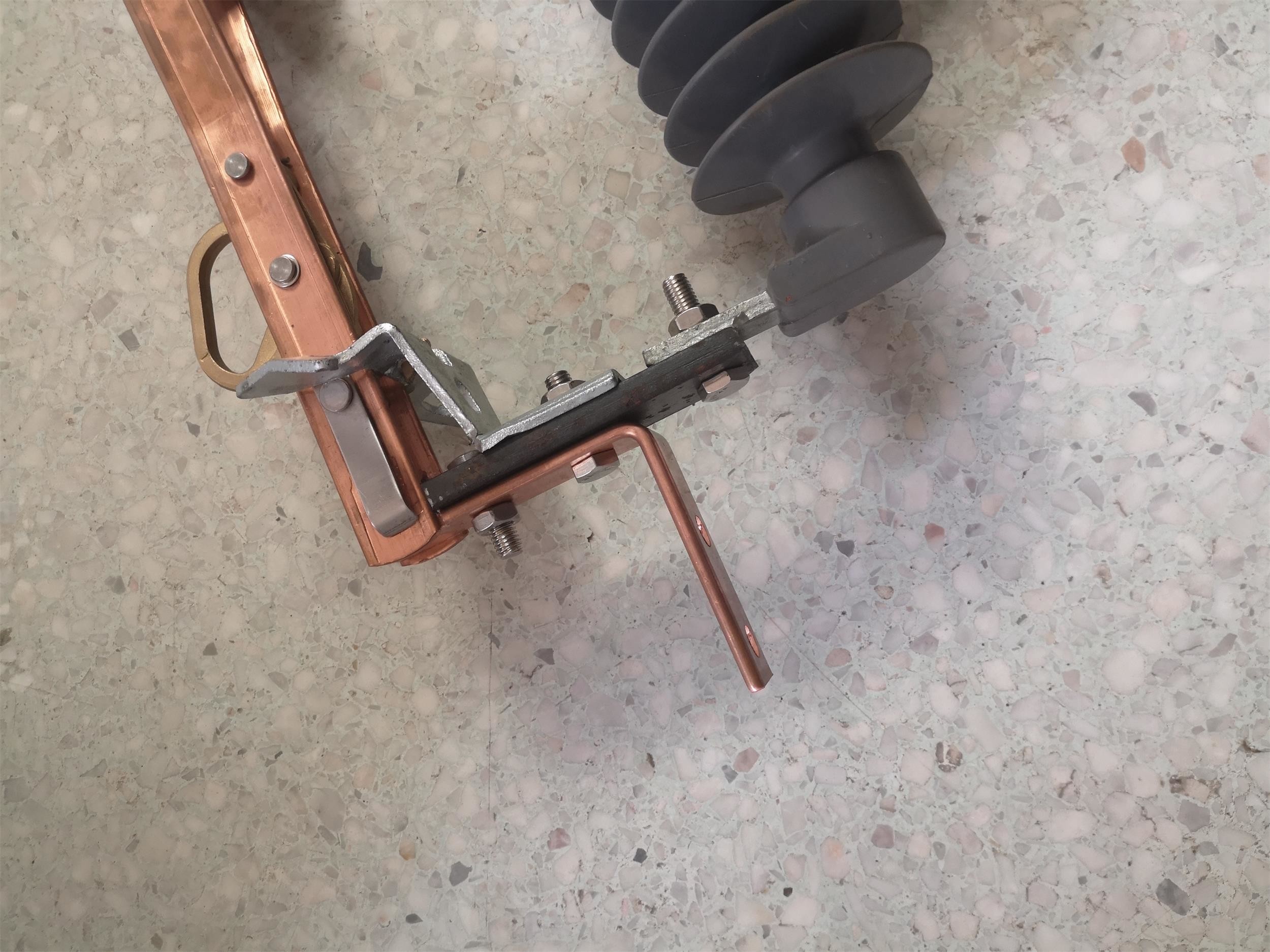

The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass
| Type | Unit | PD-12/100 | PD-12/200 |
| Rated voltage | KV | 10—15 | 10—15 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 10000 | 12000 |
| lmpulse voltage | KV | 110 | 110 |
| Power frequency withstand volatage | KV | 42 | 42 |
| Creepage distance | MM | 250 | 250 |
| Weight | KG | 7 | 7 |
| Dimensions | CM | 38.5×34.5×10.5 | 38.5×34.5×10.5 |
| Type | Unit | PD-15 | PD-15 |
| Rated voltage | KV | 15-27 | 15-27 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 10000 | 12000 |
| lmpulse voltage | KV | 125 | 125 |
| Power frequency withstand volatage | KV | 45 | 45 |
| Creepage distance | MM | 355 | 355 |
| Weight | KG | 8.8 | 8.8 |
| Dimensions | CM | 51.5×34×12 | 51.5×34×12 |
| Type | Unit | PD-24 | PD-24 |
| Rated voltage | KV | 24-27 | 24-27 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 8000 | 10000 |
| lmpulse voltage | KV | 150 | 150 |
| Power frequency withstand volatage | KV | 65 | 65 |
| Creepage distance | MM | 505 | 505 |
| Weight | KG | 12 | 12 |
| Type | Unit | PD-11 | PD-11 |
| Rated voltage | KV | 24 | 24 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 10000 | 12000 |
| lmpulse voltage | KV | 150 | 150 |
| Power frequency withstand volatage | KV | 65 | 65 |
| Creepage distance | MM | 540 | 540 |
| Weight | KG | 4.5 | 4.5 |
| Dimensions | CM | 51×34×11.5 | 51×34×11.5 |
| Type | Unit | PD-12 | PD-12 |
| Rated voltage | KV | 15 | 15 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 10000 | 12000 |
| lmpulse voltage | KV | 110 | 110 |
| Power frequency withstand volatage | KV | 45 | 45 |
| Creepage distance | MM | 245 | 245 |
| Weight | KG | 3.8 | 3.8 |
| Dimensions | CM | 45×34×11.5 | 45×34×11.5 |
| Type | Unit | PD-13 | PD-13 |
| Rated voltage | KV | 33 | 33 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 6000 | 8000 |
| lmpulse voltage | KV | 170 | 170 |
| Power frequency withstand volatage | KV | 70 | 70 |
| Creepage distance | MM | 660 | 660 |
| Weight | KG | 15 | 15 |
| Dimensions | CM | 56×38×11.5 | 56×38×14.5 |
| Type | Unit | PD-36/100 | PD-36/200 |
| Rated voltage | KV | 36 | 36 |
| Rated current | A | 100 | 200 |
| Breaking current | A | 10000 | 12000 |
| lmpulse voltage | KV | 170 | 170 |
| Power frequency withstand volatage | KV | 70 | 70 |
| Creepage distance | MM | 720 | 720 |
| Weight | KG | 5 | 5 |
| Dimensions | CM | 61×34×11.5 | 61×34×11.5 |
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.
SERVICE
We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
