| 원래 장소: | 절 강성, 중국 |
|---|---|
| 브랜드 이름: | XK |
| 인증: | ISO9001 / GB / IEC |
| 모델 번호: | ZN63 12-24KV |
| 최소 주문 수량: | 한 조각 / 조각 |
| 가격: | Negotiation |
| 포장 세부 사항: | 패킹 수출 |
| 공급 능력: | 한달에 100 조각 / 조각 |
| 표준: | GBJ, JB, IEC | 정격 전류: | 630A, 1250A, 1600A |
|---|---|---|---|
| 정격된 전압: | 12KV | 기계 라이프: | 10000 |

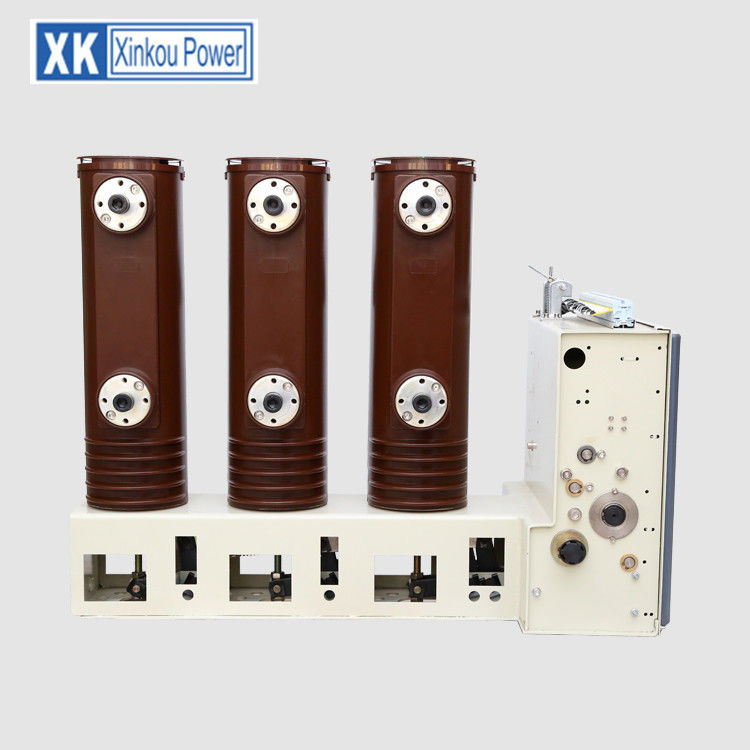

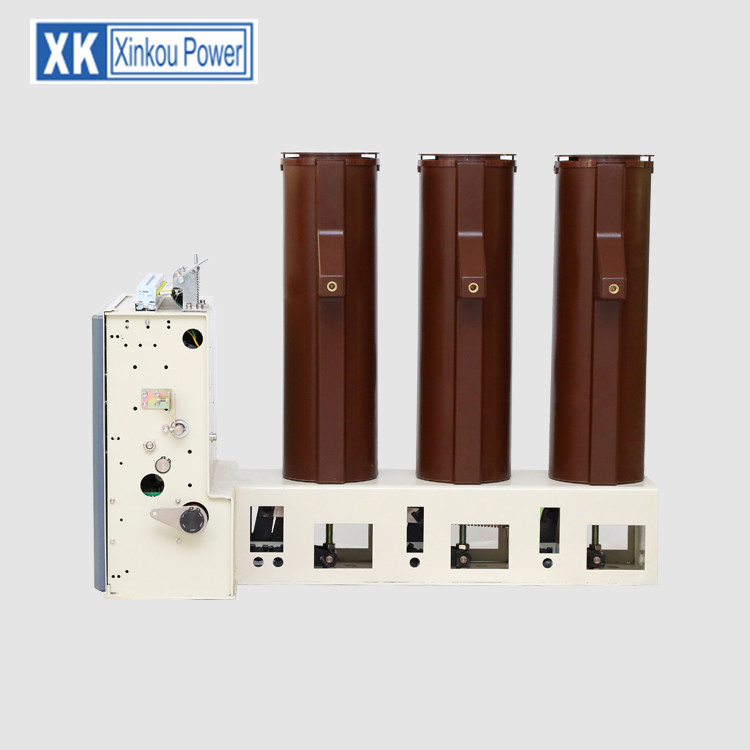

| 이름: | 실내 진공 차단기 | ||
| 하이 라이트: | vcb circuit breaker,indoor vcb panel |
||
ADVANTAGES OF VACUUM CIRCUIT BREAKER
Vacuum circuit breaker does not require any additional filling of oil or gas. They do not need periodic refilling.
Rapid recovery of high dielectric strength on current interruptions that only a half cycle or less arcing occurs after proper contact separation.
Breaker unit is compact and self-contained. It can be installed in any required orientation.
Because of the above reasons together with the economic advantage offered, vacuum circuit breaker has high acceptance.
| Item | Unit | Data | |||
| Rated voltage | KV | 12 | |||
| Maximum working voltage | KV | 12 | |||
| Rated Current | A | 630-1250 | 630-1600 | 630-1600 | |
| Rated short circuit breaking current | KA | 20 | 25 | 31.5 | |
| Rated short-circuit switching current | KA | 50 | 63 | 80 | |
| Rated peak withstand current | KA | 50 | 63 | 80 | |
| 4S rated short-circuit withstand current | KA | 20 | 25 | 31.5 | |
| Rated insulation level | 1min Power frequency withstand voltage | KV | 42(fracture 48) | ||
| lmpulse withstand voltage | KV | 75(fracture 84) | |||
| Rated short-circuit current breaking times | Times | 50 | |||
| Rated Operating Mechanism Closing Voltage(DC) | V | AC,DC 110,220 | |||
| Rated Operating Mechanism Opening Voltage(DC) | V | AC,DC 110,220 | |||
| Contact opening distance | mm | 11±1 | |||
| Overtravel(the length of contact spring compression) | mm | 3.5±0.5 | |||
| Closing/Opening Time Difference Among Three Phase | ms | ≤2 | |||
| Contact closing bounce time | ms | ≤2 | |||
| Average opening speed | m/s | 0.9-1.2 | |||
| Average closing speed | m/s | 0.5-0.8 | |||
| Tripping Time | Maximum operating voltage | S | ≤0.05 | ||
| Minimum operating voltage | S | ≤0.08 | |||
| Closing time | S | 0.1 | |||
| The main circuit resistance of each phase | 630≤50 | 1250≤45 | 1600≤40 | ||
| Allowed Consumpted thickness of Contacts | mm | 3 | |||
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
