| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | XK |
| 인증: | ISO9001 / GB / IEC |
| 모델 번호: | 11KV DOFC |
| 최소 주문 수량: | Negotiation300 - 999개 부분 |
| 가격: | negotiable |
| 포장 세부 사항: | 포장 수출 |
| 공급 능력: | 달 당 100개 조각/조각 |
| 키워드: | 11 kv는 융합합니다 | 표준: | GB1208-2006 |
|---|---|---|---|
| 정격 전압: | 11KV | 기계적인 생활: | 10000 |
| 정격 현재: | 100A/200A | 항구: | 닝보 |
| 강조하다: | 11kv Drop Out Fuse Cutout,11kv fuse cut out,IEC cut out fuse |
||

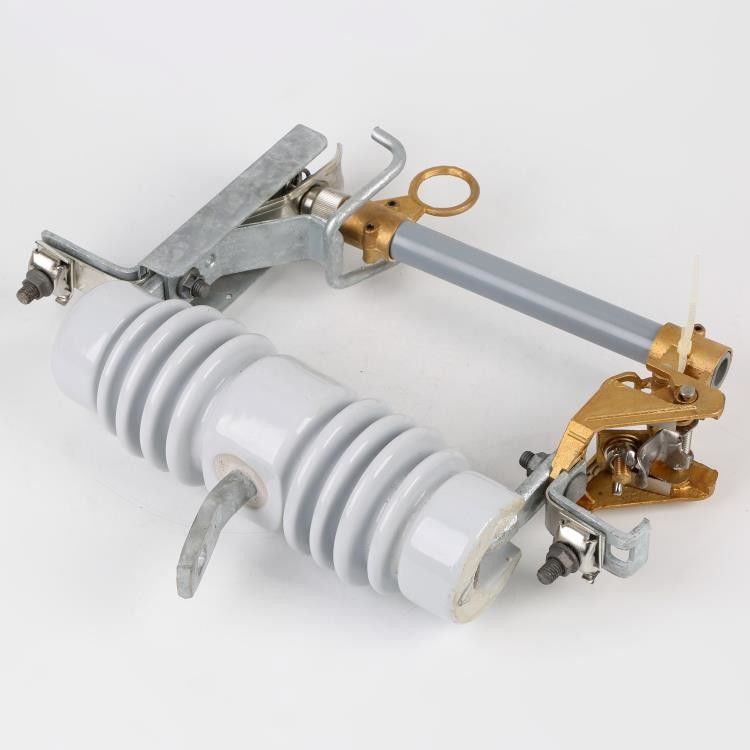

11kv Porcelain Expulsion Drop Out Fuse High Voltage IEC Standard Available
11kv drop out fuse high voltage drop-out fuse is outdoor high voltage protective device, to be connected with incoming feeder of distribution, transformer or distribution line.
the installation of high-voltage fuse technical requirements:
1, the fuse tube must be tightly inserted into the jaws;
2, with the motion indicator fuse tube, the indicator should be installed down;
3, melt specifications must meet the design requirements, may not have broken and damaged;
4, fuse tube should be free from cracks or damage.
| Type | 11KV DOFC/100 | 11KV DOFC/200 |
| Rated Voltage(kV) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12000 |
| Impulse voltage(kV) | 110 | 110 |
| Power frequency wihstand voltage(kV) | 42 | 42 |
| Creepage distance(mm) | 250 | 250 |
| Weight(kg) | 7 | 7 |
| Dimensions(CM) | 38.5*34.5*10.5 | 38.5*34.5*10.5 |
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
